10W Laser Engraving Machine
Description
Features:

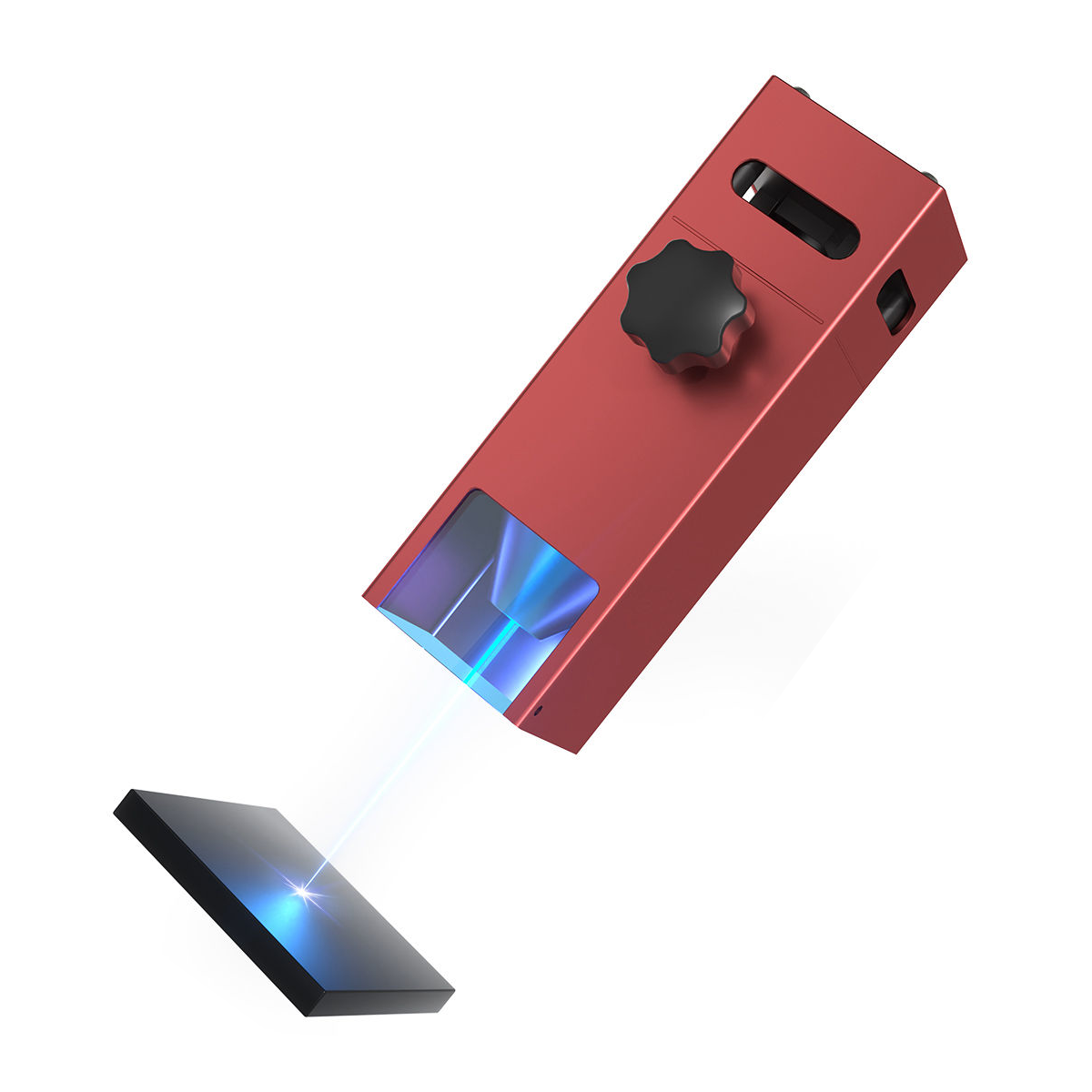

1. Newest Laser Technology: With 60W Machine Power, Real 10W Output Power Laser Module.
2. Power Cutting and Fast Engraving: ENJOYWOOD E10 Pro Laser Engraver can cleanly cut 10mm thick basswood and 5mm thick dark acrylic in a single pass. The laser engraving speed can be as high as 11000mm/min. 2 times Faster than other machine.
3. Metal Colorful Engraver: Can get a colorful engraving picture on metal.
4. Dual compression spot coupling technology: Combined with advanced 0.06mm laser spot technology and 0.01mm high precision.

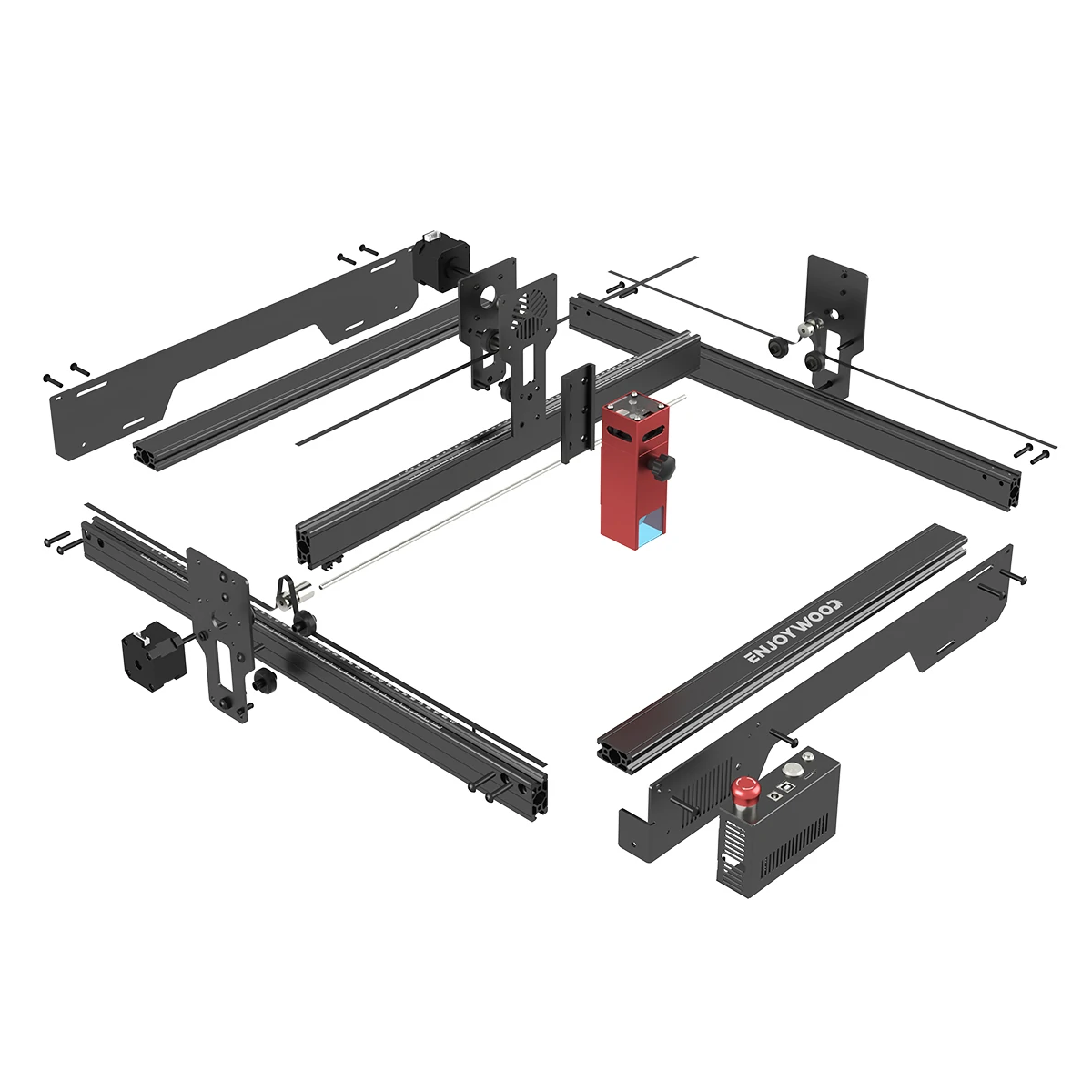

5. Better Mechanical Design and Large Area: 410x400mm working area. Easy to install machine in 10-20 min. Full metal machine structure makes cutting more accurate and stable.

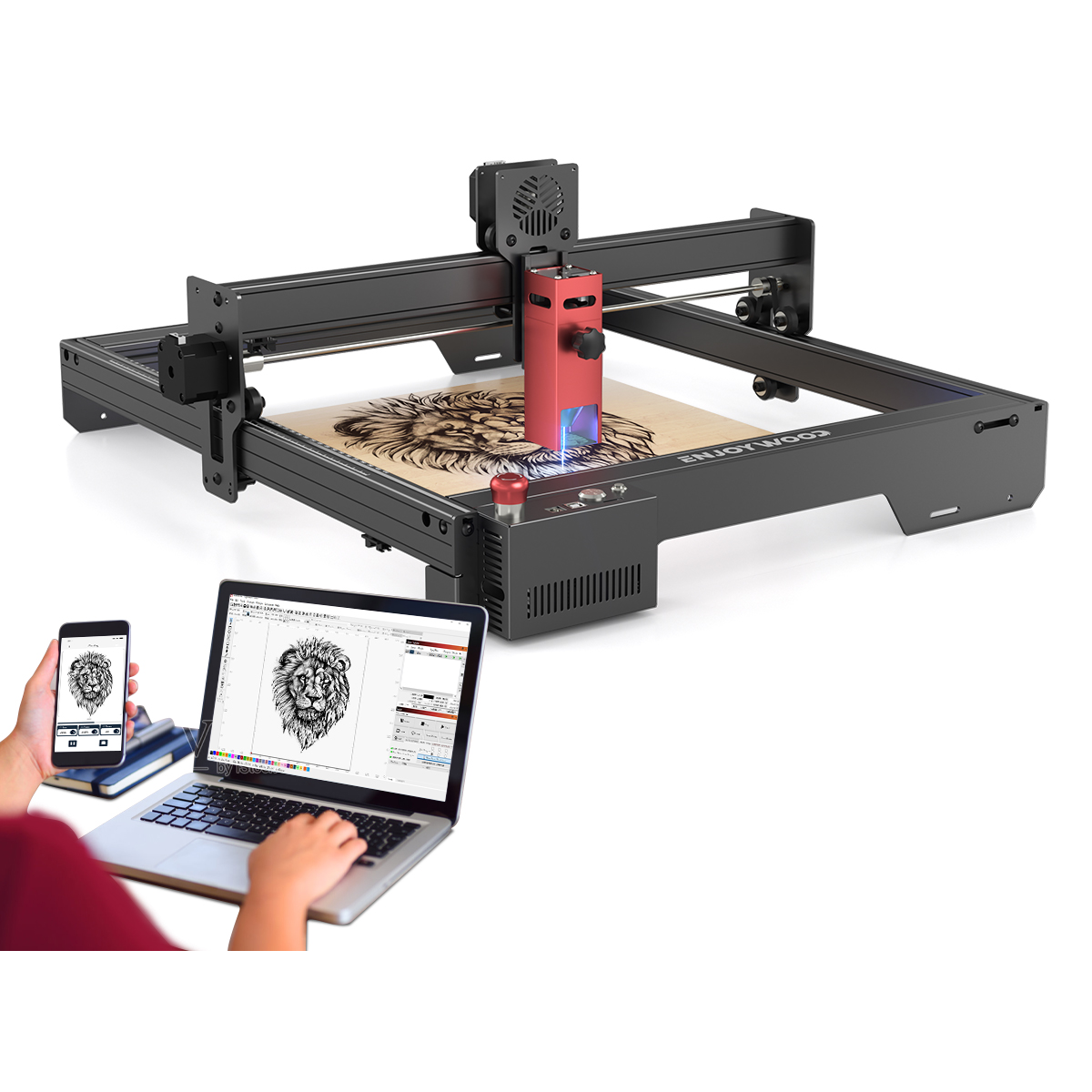

6. Wide Software Use: Compatible with various mature engraving software, such as Laserbox GRBL Software and Lightburn. ENJOYWOOD E10 laser engraver allows you to work seamlessly on Windows / Apple PC / Android / iOS devices. The DIY carving file format supports SVG/ DXF/ JPG/ JPEG/ PNG/ BMP/ TIF/ CR2, etc.
7. Support offline Operating: Support APP with TF Card(Atomstack Mobile APP).
8. Protective Eye Design: Protective cover perfectly protects your eyes and filters UV light for 97%. xTool D1 high power laser engraving and cutting machine for business starters/ hobbyists/ designers/ artists/ home-makers/ professionals.

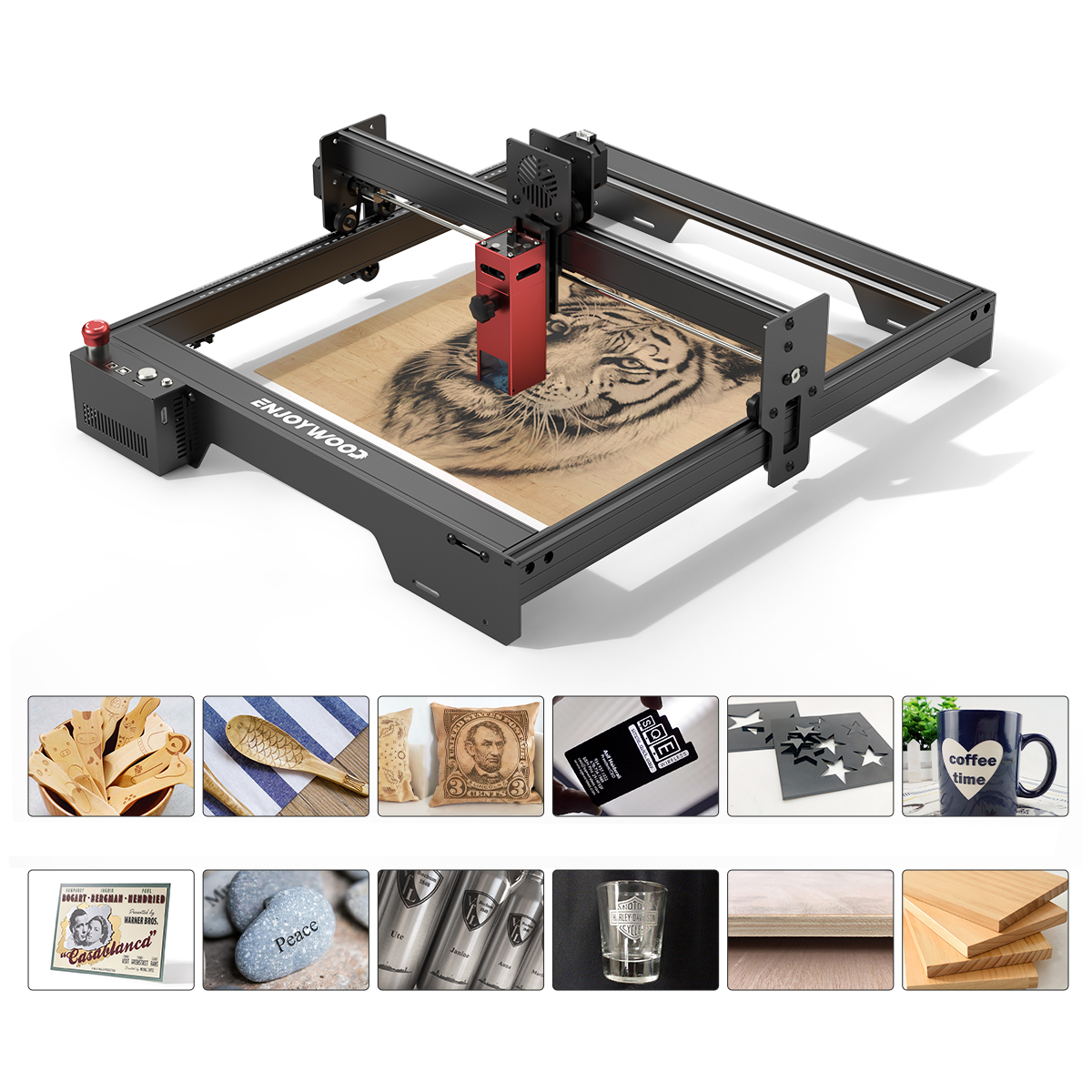

9. Wide Material Use: Unleash your creativity on over one hundred materials including paper, bamboo, wood, leather PCB board, aluminum oxide, metal, basswood, glass, etc.

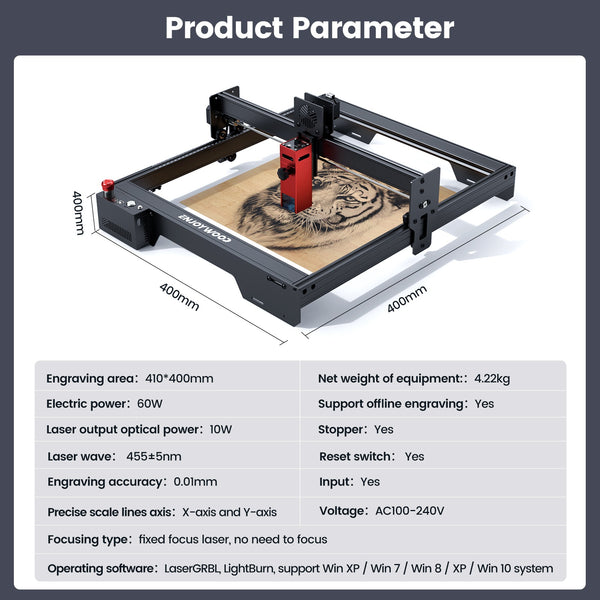

Specification:
|
Item Model Number |
Enjoywood CEL-E10 |
|
Working Area |
410*400mm |
|
Carving Objects |
Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate; |
|
Cutting Objects |
Cardboard, Non-woven Fabric, Wood Board, Acrylic, Some Thin Plastic Board, Sponge; |
|
Machine Power |
60W |
|
Laser Output Power |
10-15W |
|
Wave Length |
445 ± 5nm |
|
Engraving Accuracy |
0.01mm |
|
Focusing Method |
Fixed Focus Laser, No Need to Focus |
|
Laser Protective Cover |
Protect the user's eyes and prevent pets from grabbing the laser spot. |
|
Operating Software |
PC: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system and Apple MOBILE: APP(ATOMSTACK), support IOS, Android. |
|
Input Format |
NC, BMP, JPG, PNG, DXF, etc. |
|
Data Transmission Method |
USB Connection |
|
Input Voltage |
AC100-240V, 50/60Hz |
|
Output Voltage |
DC12V, 5A |
|
Certification |
CE FCC RoHS FDA PSE |
| Plug | EU/US/UK/AU |
Note:
When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
Please do not touch the laser emitter with your hand, or it may burn your hand.
Please avoid strong impact on the machine.
Children under 14 are not allowed to use this product and children over 14 need adult supervision.
The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn.
Package Included:
|
1x |
Laser Machine Bracket |
|
1x |
10W Laser |
|
1× |
24V2A Power Adapter |
|
1× |
Power Switch Line |
|
1× |
USB Cable |
|
Step 1~5 Installation Package: |
|
|
1× |
M5 Wrench |
|
10x |
Rolled Belt |
|
3x |
Small Wood |
|
1× |
Focal Length Film |
|
1× |
M3 Wrench |
|
1× |
Marker |
|
1x |
Brush |
|
3x |
Small Acrylic |
|
1x |
Stainless Steel Backing Plate for Cutting |
